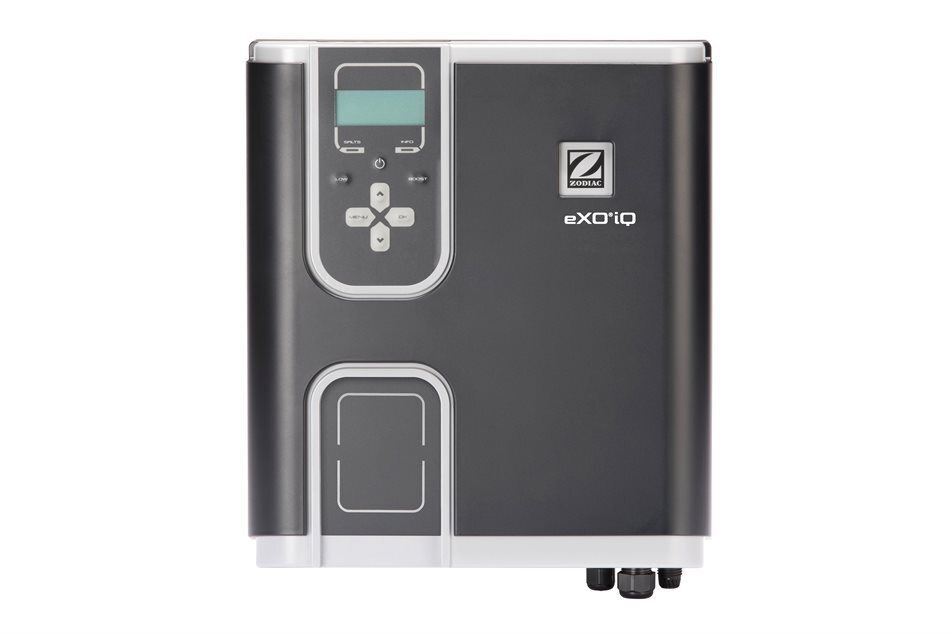

eXO MID iQ CHLORINATOR

The all-new eXO® MID iQ Chlorinator from Zodiac represents the next generation of premium pool chlorination systems. Combining cutting-edge technology with a sleek, smart design, it offers enhanced features and the option to connect to the popular iAquaLink system for remote monitoring and control. Ideal for pools up to 70,000 litres, this system uses advanced automation to ensure efficient and consistent chlorine production, keeping your pool water healthy, sanitized, and perfectly balanced.

Key Features

• Long-Life RP Cell:
  Upgraded automatic cleaning cell plates offer ultra-long performance and reliable chlorine production.

• Multi-Colour Light Control:
  Control your pool lights directly from the chlorinator or via the iAquaLink app (additional relay box required).

• Salt or Mineral Switcher:
  Flexibility to use either standard pool salt or mineral salts for chlorine production, ensuring healthy, sanitized water.

• Pool Cover Mode:
  Automatically reduces output when a pool cover is engaged, maintaining efficient operation during low-usage periods.

• iAquaLink Enabled:
  Built-in WiFi connectivity allows for remote monitoring and control, providing complete management at your fingertips.

• Smart Temperature Sensor:
  Automatically adjusts chlorine production in cold water to prevent excessive cell wear and reduce maintenance costs.

• Variable Speed Pump Control:
  Communicates with RS485-enabled pumps to optimize filtration and reduce energy consumption.

Benefits

• Enhanced Pool Health:
  Enjoy crystal-clear, sanitized water that is balanced and enriched with minerals, offering a gentler swimming experience.

• Effortless Control:
  Remotely monitor and adjust settings through the iAquaLink app, giving you full control over your pool’s sanitation and auxiliary devices from anywhere.

• Reduced Maintenance:
  The self-cleaning RP cell and smart sensors minimize the need for manual cleaning and recalibration, saving time and lowering operational costs.

• Customizable Operation:
  Flexible operating modes (Normal, Low, Boost) and the ability to switch between salt and mineral operation ensure that the system adapts to your specific pool requirements.

• Energy Efficiency:
  Variable speed pump control and smart output regulation help lower energy consumption while maintaining optimal water circulation and sanitation.

Specifications

• SKU: WW000215

• GTIN: 9343609038045

• Package Dimensions:

• Power Pack: 39 cm (H) x 35 cm (L) x 13 cm (W)

• RP Cell: 18 cm (H) x 35 cm (L) x 14 cm (W)

• Brand: Zodiac

• Model: eXO® iQ Mid

• Product Type: Pool Chlorinator

• Shipping Type: Standard

• Warranty: 3 Years

• Self Cleaning: Yes

• Chlorine Gas Output: 25 g/h

• Pool Size Compatibility: Up to 70,000 L

• Battery Backup: Yes

• Time Clock: Yes

• Min/Max Salt Levels: 4000 ppm

• Plumbing: Compatible with 40/50 mm fittings



How It Works

• Salt or Mineral Conversion:
  The eXO® MID iQ Chlorinator converts salt (or mineral salt blends) into chlorine through a process of electrolysis. A low-voltage DC current is applied to its ultra-long life reverse polarity (RP) cell, which not only produces chlorine efficiently but also features automatic cleaning to minimize scale buildup.

• Smart Automation Modes:
  With multiple operating modes—including Normal, Low, and Boost—the chlorinator allows you to adjust output in 10% increments. Boost Mode can deliver continuous 100% output for 24 hours, while Low Mode reduces production for covered pools or low-usage periods.

• Remote Control & Connectivity:
  Thanks to its built-in WiFi chip, the unit is iAquaLink enabled, allowing for remote monitoring and control from your smartphone. This connectivity extends to auxiliary devices such as pool lights and covers, enabling complete integration of your pool’s automation system.

Installation

• Professional Mounting:
  The eXO® MID iQ is designed for installation by licensed professionals following AS/NZ 3000 standards. The controller should be mounted securely on a wall using the supplied bracket, ideally positioned at least 1.5 meters off the ground and within 2 meters of the electrolytic cell.

• Plumbing Integration:
  Connect the chlorinator to your pool’s return line using standard 40/50 mm PVC fittings. Ensure that the electrolytic cell is installed horizontally and, if required, in a bypass configuration to maintain optimal water flow.

• Electrical & Sensor Setup:
  Complete all electrical connections with the help of a licensed electrician. If you opt for additional sensor upgrades (such as ORP and pH modules), install them according to the guidelines provided in the manual to guarantee accurate water chemistry control.

Maintenance & Operation

• Self-Cleaning RP Cell:
  The upgraded automatic cleaning cell plates dramatically reduce manual maintenance by periodically reversing polarity to clear calcium and debris buildup.

• Routine Inspections:
  Regularly check warning indicators and ensure that all connections, sensors, and fittings are secure. Periodic calibration of optional pH and ORP sensors is recommended for maintaining optimal water balance.

• Software & Timer Adjustments:
  Use the intuitive touchscreen and iAquaLink app to program operating schedules that align with your pool’s filtration cycles. This “set and forget” functionality allows the chlorinator to run efficiently while you enjoy a pristine pool.

Warranty & Assurance

The eXO® MID iQ Chlorinator is backed by a 3-year warranty, ensuring reliable performance and peace of mind. With features like built-in surge protection and battery backup, Zodiac stands behind the long-lasting performance of this advanced system. For complete warranty details, please refer to the information provided on zodiac.com.au/warranty-information.

Upgrade your pool management experience with the eXO® iQ Mid Chlorinator—where advanced smart technology meets premium design, ensuring effortless operation, superior water quality, and complete remote control for a healthier, more enjoyable swimming environment.
