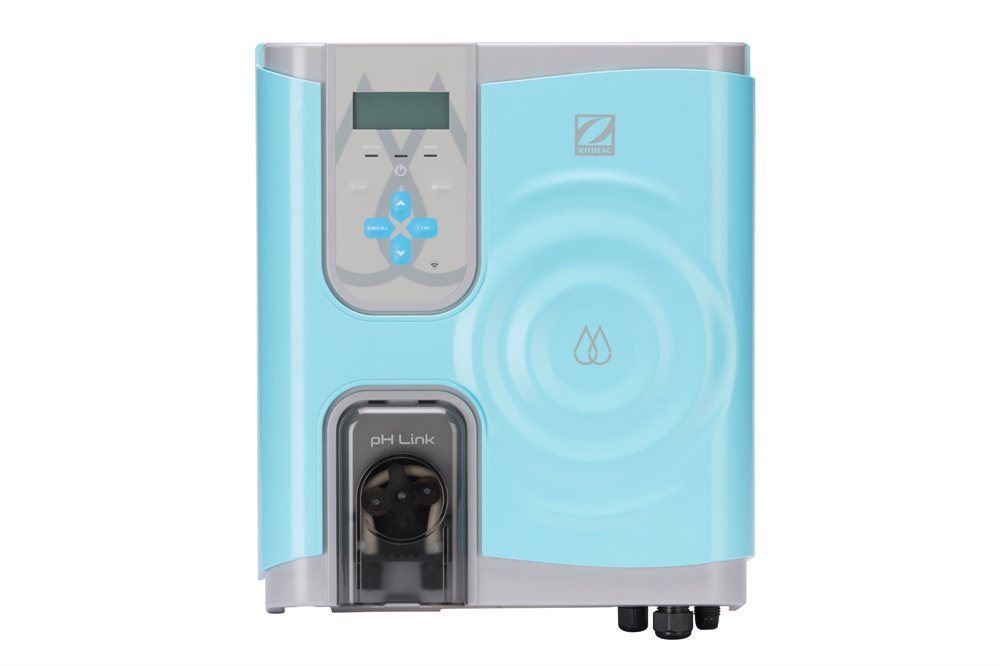

HYDROXINATOR LARGE iQ CHLOR

The Hydroxinator® Large iQ Chlor from Zodiac is a revolutionary mineral pool water management system engineered with health and smart automation in mind. Combining advanced technology with a sleek, modern design, this chlorinator not only ensures efficient chlorine production for superior pool sanitation but also maintains perfect water balance with premium-grade pH sensors. With features such as iAquaLink connectivity for remote monitoring, variable-speed pump control, and intelligent automation modes—including Pool Cover Mode and Multi-colour Light Control—it offers a comprehensive solution for pools up to 100,000 litres. Climate Care Certified and built for longevity, it is the ultimate choice for achieving crystal-clear, mineral-enriched pool water while minimizing maintenance and energy consumption.

Key Features

• Ultra-Long Life RP Cell:
  Upgraded automatic cleaning cell plates ensure years of reliable chlorine production with minimal maintenance.

• iAquaLink Enabled:
  Built-in WiFi connectivity allows for remote monitoring and control through the Hydroxinator app, providing full management at your fingertips.

• Variable-Speed Pump Control:
  Communicates with RS485-enabled pumps for precise control over filtration speeds and reduced energy consumption.

• Smart Temperature Sensor:
  Automatically adjusts chlorine output in cold water to protect the cell from excessive wear, extending its lifespan.

• Multi-colour Light Control:
  Enables control of pool lighting directly from the chlorinator or via the app (additional relay box required).

• Pool Cover Mode:
  Automatically reduces chlorine output when a pool cover is engaged, ensuring efficient operation during periods of low pool use.

• Automated Water Chemistry Control:
  Premium-grade pH sensors work in tandem with optional ORP upgrades to continuously monitor and maintain perfect water balance.

Benefits

• Superior Water Quality:
  Achieve crystal-clear, mineral-enriched pool water that is gentler on skin and eyes, enhancing the overall swimming experience.

• Effortless Control & Convenience:
  Remotely monitor and adjust your pool’s sanitation and filtration settings through the iAquaLink app, allowing for complete control from anywhere.

• Reduced Maintenance & Energy Savings:
  The self-cleaning RP cell and variable-speed pump control lower maintenance requirements and optimize energy consumption, reducing overall operating costs.

• Enhanced Safety & Longevity:
  Smart sensors protect the unit from extreme conditions, while robust construction and climate care certification ensure long-lasting, reliable performance.

• Customizable Operation:
  Flexible operating modes (Normal, Low, Boost) and automated features like Pool Cover Mode allow you to tailor the system to your pool’s specific needs.

Specifications

• Recommended Pool Size:
  Suitable for pools up to 100,000 litres (mild climate conditions).

• Nominal Chlorine Production:
  Up to 35 grams per hour (for large iQ models).

• Operating Modes:

• Normal Mode: Adjustable in 10% increments from 0% to 100%.

• Low Mode: Adjustable output from 0% to 30% for covered or low-usage periods.

• Boost Mode: Continuous 100% output for 24 hours for rapid chlorine level increases.

• Mineral Level:
  4000 ppm recommended (minimum 3300 ppm).

• Power Supply:
  197 W; 110–240 VAC; 50–60 Hz.

• Dimensions:

• Power Pack: H 370 mm x W 320 mm x D 100 mm

• Electrolytic Cell: H 160 mm x W 320 mm x D 110 mm

• Additional Features:

• Smart temperature sensor for cell protection.

• Variable-speed pump control via RS485.

• Optional multi-colour light control (requires additional relay box).

• Pool Cover Mode for automatic output adjustment.

How It Works

• Saltwater Electrolysis & Mineral Management:
  The Hydroxinator® Large iQ Chlor uses an ultra-long life reverse polarity (RP) cell that converts saltwater into chlorine via controlled electrolysis. As water passes through the cell, a low-voltage DC current transforms dissolved salt into chlorine gas, which dissolves to form free chlorine that sanitizes the pool while managing mineral levels for a gentler water experience.



• Smart Automation & Operating Modes:
  The system operates in multiple modes—Normal, Low, and Boost—allowing incremental adjustments in chlorine production (from 0% up to 100% in 10% increments). Boost Mode can deliver continuous 100% output for 24 hours to quickly elevate sanitizer levels, while Low Mode reduces output for periods of low usage or when the pool is covered.



• Sensor-Driven Control:
  Integrated smart sensors, including a temperature sensor and premium-grade pH sensors, automatically regulate chlorine output. The temperature sensor protects the cell in cold water conditions, and with optional upgrades for pH and ORP management, the Hydroxinator continuously monitors and adjusts water chemistry for optimal balance.



• Remote & Integrated Connectivity:
  Featuring built-in WiFi (iAquaLink enabled), the chlorinator connects to the Hydroxinator app, allowing you to monitor and control pool sanitation, pump speed, lighting, and even pool cover mode from anywhere, ensuring complete and convenient pool management.



Installation

• Professional Setup:
  The Hydroxinator® Large iQ Chlor is designed for installation by licensed professionals in accordance with AS/NZ 3000 and local electrical codes.

• Mounting the Controller:
  The power pack controller should be mounted securely on a wall using the supplied bracket. It must be positioned at least 1.5 meters off the ground and within 2 meters of the electrolytic cell, while also maintaining a safe distance (minimum 3.5 meters) from the pool or spa wall to prevent splash-back.

• Plumbing Integration:
  Install the electrolytic cell as the final unit in the pool circulation line using standard 40/50 mm PVC fittings. Ensure the cell is installed horizontally to achieve proper water flow and efficient chlorine production. A bypass setup is recommended if the system flow exceeds recommended limits.

• Electrical & Sensor Connections:
  All electrical connections must be completed by a licensed electrician. Optional sensor modules (pH, ORP, temperature) should be installed according to the manufacturer’s guidelines to ensure accurate water chemistry management. Auxiliary devices such as relay boxes for multi-colour light control or pool cover interfaces require additional wiring and should be installed as specified in the installation manual.

Maintenance & Operation

• Self-Cleaning & Routine Inspections:
  The upgraded RP cell features an automatic reverse polarity function that minimizes the accumulation of calcium and debris, significantly reducing the need for manual cleaning. However, periodic visual inspections of the cell, sensors, and connections are recommended to maintain peak performance.

• Sensor Calibration:
  Regular calibration of pH and ORP sensors is crucial to ensure accurate water chemistry readings. Follow the manufacturer’s recommended schedule to recalibrate sensors every few months.

• Timer & Software Updates:
  Utilize the intuitive touchscreen and the iAquaLink app to set operating modes and timers that align with your filtration schedule. Firmware updates via the app help ensure the system remains current with the latest features and performance enhancements.

• Seasonal Adjustments:
  In colder conditions, the smart temperature sensor automatically lowers chlorine production to protect the cell. When a pool cover is in use, the system shifts to Cover Mode, reducing output to conserve energy and maintain water balance.

Warranty & Assurance

The Hydroxinator® Large iQ Chlor is backed by a comprehensive warranty designed to ensure long-term performance and peace of mind:

• Core Unit Warranty: 4 years or 8,000 running hours (whichever comes first).

• Sensor Warranty: 2 years on premium pH (and optional ORP) sensors.

• Accessory Warranty: 1 year on components such as the peristaltic pump, tubing, and one-way valve (for models equipped with pH/PRO management).

Upgrade your pool management experience with the Hydroxinator® Large iQ Chlor—where smart design meets advanced automation for superior water quality, reduced maintenance, and complete remote control, ensuring a pristine, healthy pool environment with ease.
