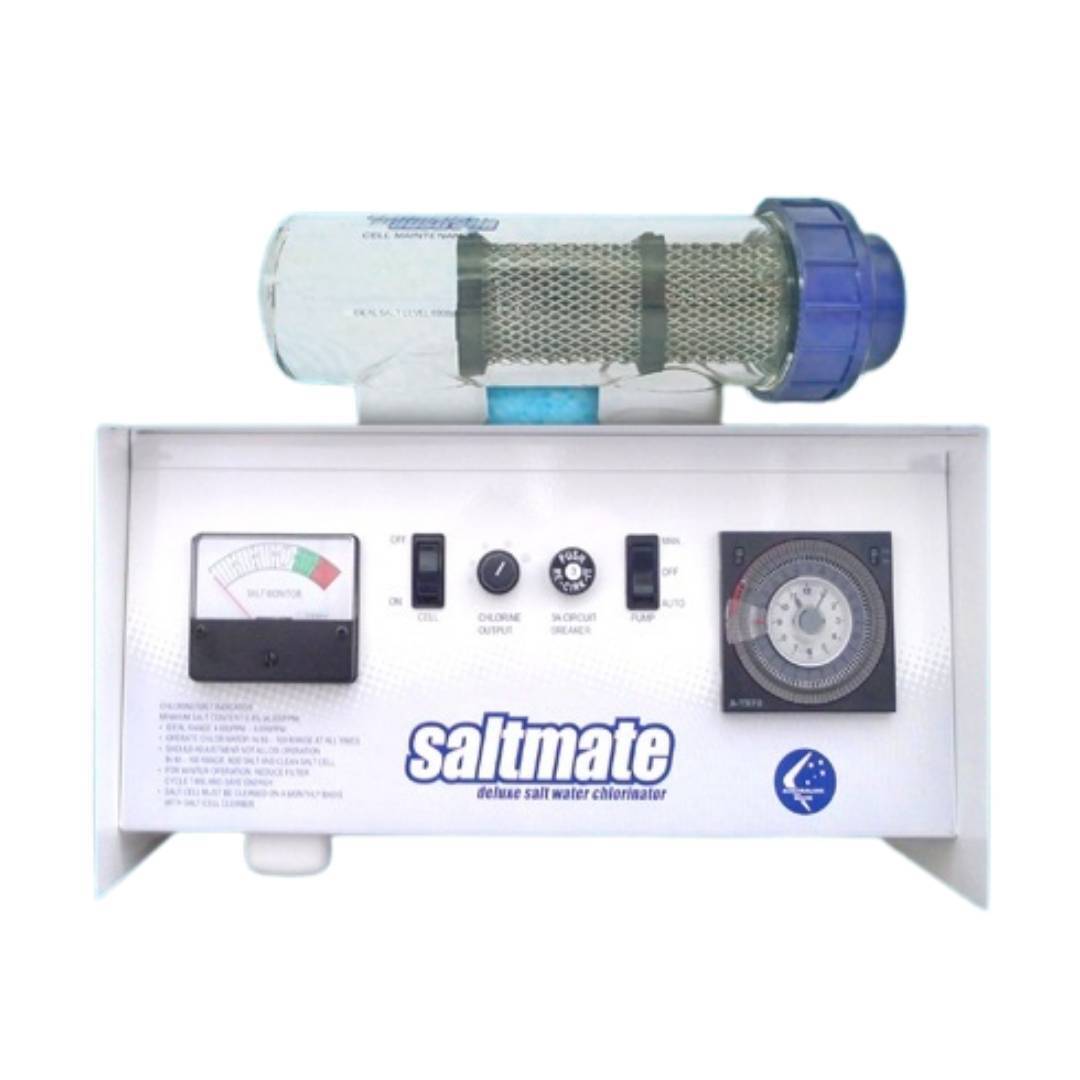

Saltmate 150 Chlorinator c/w 12 volt light transformer

Saltmate 150 Chlorinator c/w 12 volt light transformer SMT150

SKU: SM0011
i
Special Order
$1,050.00
$1,050.00

Special Order

- Leaves our warehouse in: 1-2 weeks

Saltmate 150 Chlorinator c/w 12 volt light transformer

Saltmate 150 Chlorinator c/w 12 volt light transformer SMT150

$1,050.00

Saltmate 150 Chlorinator c/w 12 volt light transformer SMT150

$1,050.00

Experience a new level of pool care with the Saltmate 150 Chlorinator c/w 12 Volt Light Transformer SMT150. Designed and built in Australia, this innovative unit delivers 28 grams per hour of chlorine while simultaneously elevating your pool’s atmosphere with integrated, energy-efficient lighting. Ideal for pools ranging from 50,000 to 80,000 liters, this advanced chlorinator not only ensures crystal-clear water with minimal maintenance but also enhances your outdoor living space with ambient illumination.

Product Overview

The Saltmate 150 Chlorinator c/w 12 Volt Light Transformer SMT150 is engineered to provide dependable, automated pool sanitization paired with the added benefit of pool lighting. Its cutting-edge design features an intuitive timer with battery backup, adjustable chlorine output, and compatibility with both standard and mineral salt blends. The built-in 12V light transformer delivers an attractive glow, transforming your pool area into a stylish oasis after dark.

Features

  • Enhanced Digital Display:
    A high-contrast LCD offers real-time insights into chlorine output and salt concentration, ensuring you can easily monitor system performance.

  • Timer with Battery Backup:
    Set up a 24-hour schedule in 15-minute increments to control both the chlorinator and pool pump. The Lithium CR2032 battery backup guarantees your settings remain intact during power interruptions.

  • Adjustable Chlorine Control:
    Effortlessly modify the chlorine output to meet your pool’s precise requirements, ensuring consistent, effective sanitization without over-chlorination.

  • Integrated 12V Light Transformer:
    Enjoy a dual-purpose system that not only sanitizes your pool but also provides ambient LED lighting, enhancing your pool’s visual appeal during nighttime hours.

  • Robust, Weather-Resistant Construction:
    Crafted with premium, UV-stabilized materials and housed in an IP34-rated enclosure, this chlorinator is built to perform reliably in even the harshest outdoor conditions.

  • User-Friendly Installation:
    Designed for easy integration, the unit connects seamlessly with standard 40mm/50mm PVC pressure pipes. Its transparent cell housing permits quick visual checks of the electrode condition.

  • Safety Enhancements:
    Features such as oversalt protection, a resettable circuit breaker, and a flow-sensitive switch ensure safe and reliable operation at all times.

Benefits

  • Simplified Pool Care:
    With an intuitive digital timer and adjustable chlorine control, the system automates pool sanitization, reducing the need for frequent manual intervention and allowing you to enjoy more leisure time.

  • Enhanced Pool Ambiance:
    The integrated 12V light transformer adds a captivating LED glow to your pool area, creating an inviting atmosphere for evening swims and social gatherings.

  • Cost Savings:
    By converting affordable salt into chlorine, you reduce dependency on expensive chemical treatments. The efficient design minimizes energy consumption and long-term chemical costs.

  • Superior Water Quality:
    Consistent, on-demand chlorine production ensures your pool water remains soft, safe, and crystal clear, with minimal fluctuations that could lead to algae growth or skin irritation.

  • Durable and Reliable:
    Constructed with premium materials and an IP34-rated, weather-resistant casing, this chlorinator is built to endure harsh conditions and deliver reliable performance season after season.

  • User-Friendly Operation:
    Easy-to-read displays, straightforward controls, and simple installation mean that managing your pool’s chlorination is hassle-free. The clear cell housing further allows for quick visual inspections and efficient maintenance.

How It Works

The Saltmate 150 Chlorinator c/w 12 Volt Light Transformer SMT150 harnesses the process of saltwater electrolysis to produce chlorine continuously:

  • Electrolysis Process:
    When salt is dissolved in your pool water (optimally around 5000ppm), a low-voltage DC current passes through the electrolytic cell’s parallel plates. This converts chloride ions into chlorine gas, which rapidly dissolves to form free chlorine that sanitizes your pool.

  • Automated Operation:
    A timer coordinates the chlorinator and pool pump, ensuring the system runs only when needed. Although manual cell cleaning is required periodically, the efficient design helps maximize chlorine production between cleanings.

  • Integrated Lighting:
    The 12V light transformer activates ambient LED lighting, providing a sophisticated, energy-efficient light that enhances your pool’s nighttime aesthetics.

Installation and Maintenance

Installation

  • Power Pack Placement:
    Mount the power pack in a sheltered, well-ventilated area near your pool’s pump and filtration system—ideally 1–1.5 meters above ground level—and connect to a dedicated 240V outlet with proper circuit protection.

  • Plumbing Integration:
    Install the electrolytic cell as the final component in your pool’s plumbing (after the filter) using standard 40mm/50mm PVC pipes. Ensure the cell is installed horizontally for optimal chlorine production and gas trapping.

  • Electrical Connections:
    Follow the provided wiring diagram to connect the cell lead to the junction box on the underside of the power pack. Secure all connections and replace the junction box cover to safeguard the electrical components.

Maintenance

  • Routine Water Testing:
    Regularly test your pool’s salt level (4000–6000ppm, ideally 5000ppm), pH (7.2–7.6), and total alkalinity (80–120ppm). Maintain free chlorine levels between 1.5–3.0ppm by adjusting the chlorine control as needed.

  • Cell Inspection and Cleaning:
    Since this model is not self-cleaning, inspect the clear cell housing monthly (or more often in hard water areas) for calcium deposits. If buildup is present, power down the system, remove the cell, and soak the electrodes in a recommended cleaning solution for 5–10 minutes. Rinse thoroughly, lubricate the O-ring with a silicone-based lubricant, and reassemble.

  • Timer and Battery Check:
    Program the timer based on pool usage and seasonal conditions. Regularly verify the battery backup is functioning to ensure your settings remain intact during power outages.

  • Safety Inspections:
    Periodically examine all electrical connections and mounting fixtures to ensure they remain secure and corrosion-free. Verify that the flow-sensitive switch is operational to guarantee consistent water circulation.

Warranty

The Saltmate 150 Chlorinator c/w 12 volt light transformer SMT150 is backed by a comprehensive 5-Year Manufacturer Warranty. This includes a 2-Year Full Warranty on the power pack and electrolytic cell, followed by an additional 3-Year Pro Rata Warranty on the cell. This warranty reflects Saltmate’s commitment to quality, ensuring that your investment is protected against manufacturing defects and material failures.

By choosing the Saltmate 150 Chlorinator c/w 12 volt light transformer SMT150, you’re investing in a state-of-the-art, low-maintenance pool sanitization system that guarantees superior water quality, cost savings, and ease of operation. Enjoy the luxury of consistently clean, soft, and safe pool water with a product engineered to meet the highest standards of performance and durability.

Enhance your pool care routine with the Saltmate 150 Chlorinator c/w 12 Volt Light Transformer SMT150—where advanced chlorination technology meets elegant pool lighting, delivering pristine water quality and a stunning nighttime ambiance with minimal effort.

  • Chlorine Output: 28 grams per hour of chlorine (28g/h of pure chlorine gas) generated while the pool pump runs.
  • Recommended Pool Size: Optimized for pools between 50,000 and 80,000 liters.
  • Self-Cleaning Function: Not self-cleaning – this standard model requires regular manual cell inspections to prevent calcium buildup.
  • Salt Requirement: Operates at a pool salinity of approximately 0.4–0.6% (ideal at ~5000ppm, minimum 4000ppm). Salt is continuously recycled, necessitating only periodic top-ups.
  • Power Supply: 220–240 VAC, 50 Hz single-phase with an internal 3 Amp circuit breaker for overload protection. (Max pump load: 8A)
  • Timer & Battery Backup: A 24-hour digital timer with 15-minute increments controls system operation, with a Lithium CR2032 battery ensuring retention of settings during outages.
  • Plumbing Requirements: Compatible with standard 40mm or 50mm PVC pressure pipes; the cell is installed inline on the pool return line and should be mounted horizontally.
  • Enclosure & Construction: Housed in an IP34-rated, weather-resistant, UV-stabilized, powder-coated metal enclosure. The clear cell housing is constructed from durable UV-safe plastic.
  • Included: Integrated 12V light transformer for pool lighting enhancement.
