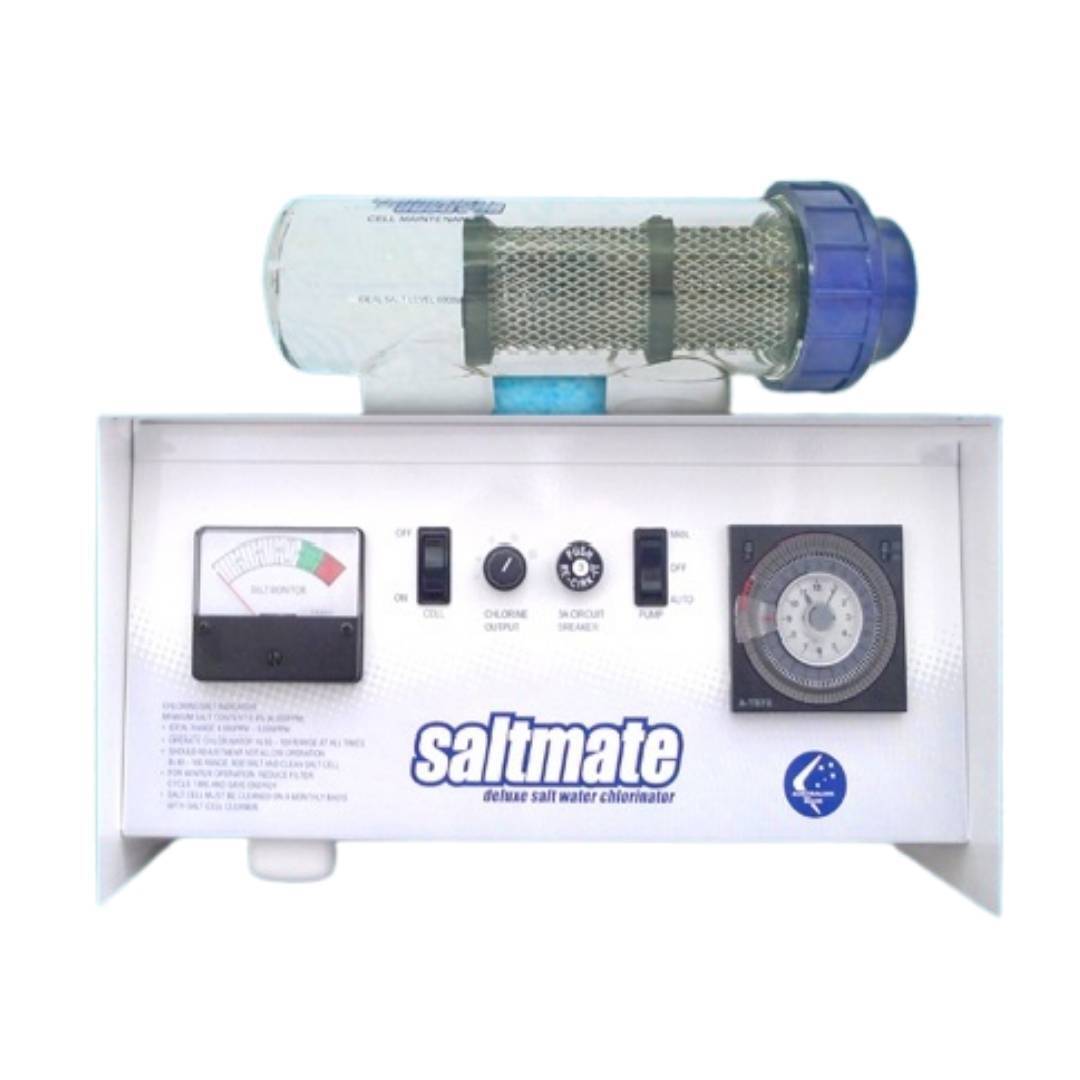

Saltmate 200 Chlorinator SMT200

The Saltmate 200 Chlorinator SMT200 is engineered for effortless, high-quality pool maintenance. Delivering 45 grams per hour of chlorine, this system is designed and constructed in Australia to ensure your pool water remains soft, safe, and sparkling. With a high-contrast display, intuitive timer with battery backup, and robust weather-resistant construction, the SMT200 is an ideal solution for pools up to 180,000 liters, providing reliable chlorination with minimal upkeep.

Saltmate 200 chlorinator Benefits and Features

• Suites pools up to 180,000 litres.

• Set & forget the time clock.

• Highest quality materials.

• Australian made.

• Mineral salt compatible.

• Adjustable chlorine control.

• Chlorine meter.

• Water-resistant casing.

• Highest quality & highest production cell.

• Resettable circuit breaker.

• Over salt protection.

• Cell safety gas trap.

• Cell on/off switch.

• Flow sensitive switch.

• Optional battery backup timer.

• Optional 12v pool light transformer.

Features

• Inbuilt Timer & Battery Backup:
  Program a 24-hour schedule with 15-minute intervals to control both the chlorinator and pool pump. The built-in battery (Lithium CR2032) ensures your settings are retained during power outages for consistent operation.

• Adjustable Chlorine Control:
  Easily fine-tune the chlorine output to match your pool’s specific requirements, ensuring optimal sanitation without over-chlorination.

• Mineral Salt Compatibility:
  Compatible with both standard and mineral salt blends, offering flexibility in achieving your desired water quality.

• Weather-Resistant Construction:
  Housed in an IP34-rated water-resistant casing, the SMT200 is built with premium materials to withstand harsh outdoor environments while maintaining a sleek, modern design.

• High Production Cell:
  Constructed with high flow rate parallel plates, the chlorinator efficiently produces 45 grams per hour of chlorine to keep your pool continuously sanitized.

• Safety Features:
  Includes oversalt and overload protection, a resettable circuit breaker, and a flow-sensitive switch to safeguard the system against damage and ensure safe operation.

• Easy Installation:
  Designed for both new installations and retrofits, it connects seamlessly with standard 40mm or 50mm pressure pipes. A clear cell housing allows for easy visual inspection of the electrodes.

• Replaceable Clock:
  The timer features an internal replaceable battery to retain programming in the event of power failure or disconnection from mains power.

Benefits

• Effortless Pool Maintenance:
  The SMT200 automates chlorine generation, eliminating the need for constant manual dosing. With its intuitive timer and adjustable control, you can set the system to run on a schedule that fits your pool usage, ensuring hassle-free, “set and forget” operation.

• Consistent, High-Quality Water:
  Enjoy crystal clear, soft, and safe pool water. The SMT200 maintains steady chlorine levels, which prevents water imbalances, reduces algae growth, and minimizes skin and eye irritation often associated with traditional chlorination methods.

• Cost-Effective Operation:
  By converting inexpensive salt into chlorine, the SMT200 significantly reduces ongoing chemical costs. Its efficient cell design minimizes energy consumption and chemical waste, resulting in long-term savings without compromising water quality.

• Durable, Weather-Resistant Construction:
  Engineered in Australia with premium materials and an IP34-rated, water-resistant casing, the SMT200 is built to withstand harsh outdoor conditions. This robust construction ensures reliable performance season after season, even in challenging climates.

• Enhanced Safety Features:
  Integrated oversalt and overload protection, along with a resettable circuit breaker and flow-sensitive switch, safeguard the system from damage and ensure safe, reliable operation at all times.

• User-Friendly Design:
  The sleek display and simple controls make monitoring and adjusting chlorine output straightforward. The clear cell housing allows for easy visual inspections, helping you stay on top of maintenance with minimal effort.

Together, these benefits make the Saltmate 200 Chlorinator SMT200 an ideal choice for pool owners seeking a reliable, efficient, and low-maintenance chlorination solution that delivers superior water quality and long-lasting performance.

How It Works

The Saltmate SMT200 utilizes the process of saltwater electrolysis to generate chlorine for sanitizing your pool. Here's how it works:

• Saltwater Electrolysis:
  A small amount of salt is dissolved into your pool water, achieving a salinity of approximately 0.4–0.6% (ideally around 5000ppm). When water flows through the electrolytic cell, a low-voltage DC current is applied across high flow rate parallel plates.

• Chlorine Generation:
  The electrical current converts chloride ions from the dissolved salt into chlorine gas. This gas instantly dissolves in the water, forming free chlorine—the active sanitizer that effectively eliminates bacteria, viruses, and algae.

• Continuous Sanitization:
  The system is designed to operate continuously while the pool pump is running. This ensures a steady, automated production of chlorine, maintaining safe and balanced water chemistry throughout the day without manual intervention.

• Self-Cleaning Function (Standard Models):
  Although the SMT200 does not feature automatic reverse polarity self-cleaning, it is engineered with a high-efficiency cell design that maximizes chlorine production. Regular manual cleaning of the cell (if needed) will help maintain peak performance and prevent calcium buildup.

By harnessing the power of electrolysis, the Saltmate SMT200 delivers a reliable, efficient, and environmentally friendly way to keep your pool crystal clear, reducing the need for traditional chemical dosing and extensive maintenance.

Installation

• Site & Power Pack Placement:
  Mount the power pack in a sheltered, well-ventilated area near your pool’s pump/filter system, ideally 1–1.5 meters above ground level. Connect to a dedicated 240V outlet with proper circuit protection.

• Plumbing Integration:
  Install the electrolytic cell as the last component in your pool’s plumbing (after the filter) using standard 40mm/50mm PVC pipes. The cell should be installed horizontally for optimal performance and gas trapping.

• Electrical Connections:
  Connect the cell lead to the junction box on the underside of the power pack according to the wiring diagram. Ensure all connections are secure and replace the junction box cover to protect the contacts.

Maintenance and Operation Tips

Routine Water Testing:

• Salt Levels: Regularly test the salt concentration to ensure it stays between 4000–6000ppm (ideally 5000ppm). Consistent salt levels are critical for maintaining optimal chlorine production.

• pH & Alkalinity: Test your pool’s pH and alkalinity weekly. Keeping the pH between 7.2–7.6 and total alkalinity between 80–120ppm not only enhances chlorine efficiency but also helps prevent scale buildup on the cell.

• Free Chlorine: Monitor the free chlorine levels to ensure they remain in the 1.5–3.0ppm range. Adjust the chlorine control dial or operating hours if the levels deviate from this target.

Cell Inspection and Cleaning:

• Visual Checks: Since the SMT200 does not feature automatic self-cleaning, visually inspect the clear cell housing at least once a month (more frequently in hard water conditions) to check for calcium deposits on the electrodes.

• Manual Cleaning: If buildup is detected, switch off the system and disconnect the power. Remove the cell, then soak the electrodes in a recommended cell cleaning solution for 5–10 minutes. Gently agitate the cell to help remove stubborn deposits, rinse thoroughly with fresh water, and reassemble. Lubricate the O-ring with a silicone-based lubricant to ensure a proper seal.

Timer Programming and Operation:

• Optimized Scheduling: Program the timer according to your pool’s usage patterns and ambient temperature. In periods of high usage or during hot summer days when chlorine degrades faster, you may need to extend the runtime to maintain adequate chlorine levels.

• Battery Backup Check: Periodically verify that the battery backup is functioning correctly so that timer settings are preserved during any power outages.

Safety Checks:

• Electrical and Mounting Inspection: Regularly inspect all electrical connections and ensure the power pack is securely mounted. Check for any signs of wear or corrosion that could impact performance or safety.

• Flow Verification: Confirm that the flow-sensitive switch is operational by ensuring consistent water circulation. Inadequate flow can trigger safety shutoffs, so keeping the pump and filter system in optimal condition is essential.

Seasonal Adjustments:

• High-Usage Periods: During the summer or when the pool sees frequent use, increase the system’s operating hours to compensate for higher chlorine consumption.

• Off-Season Care: In cooler months, reduce the operational time, but run the system periodically to prevent stagnation and inhibit algae growth.

Warranty

The Saltmate 200 Chlorinator SMT200 is backed by a comprehensive 5-Year Manufacturer Warranty:

• 2 Years Full Warranty: Covers the power pack and electrolytic cell for defects in materials or workmanship.

• 3 Years Pro Rata Warranty: Provides partial coverage on the cell electrodes beyond the initial two years.

This warranty reflects Saltmate’s commitment to quality and durability, ensuring that your investment in a high-performance pool chlorination system is well protected. Be sure to register your product if required and keep your proof of purchase and warranty card from the manual. In the unlikely event of an issue, your Saltmate RP20 Deluxe will be taken care of promptly under the warranty terms, ensuring you can continue to enjoy the benefits of a trouble-free, automatically chlorinated pool.

The Saltmate SMT200 Deluxe Standard Saltwater Chlorinator delivers reliable, efficient pool sanitation with advanced controls and robust construction. Enjoy soft, sparkling pool water with minimal maintenance and the assurance of a comprehensive warranty, all in one high-quality Australian-engineered unit.
